A-10 Thunderbolt II (Warthog)
Specifications | Achievements | Features | Background | Photos


A-10 Thunderbolt II (Warthog)




A-10 Thunderbolt II (Warthog) Specifications
Primary Function: close air support (A-10), airborne forward air control (OA-10)
Contractor: Fairchild Republic Co.
Crew: One
Unit Cost: $9.8 million (fiscal 98 constant dollars)
Powerplant
  Two General Electric TF34-GE-100 turbofans (9,065 pounds each)
Dimensions
Length: 53 feet, 4 inches (16.16 meters)
Wingspan: 57 feet, 6 inches (17.42 meters)
Height: 14 feet, 8 inches (4.42 meters)
Weights
Empty: 25,600 lb
Maximum Takeoff: 51,000 lb (22950 kg)
Performance
Speed: 420 mph (Mach 0.56)
Ceiling: 45,000 feet (13636 meters)
Range: 800 miles (695 nm)
Armament
  One 30 mm GAU-8/A seven-barrel Gatling gun; up to 16,000 pounds (7,200 kilograms) of mixed ordnance on eight under-wing and three under-fuselage pylon stations, including 500 pounds (225 kilograms) of Mk-82 and 2,000 pounds (900 kilograms) of Mk-84 series low/high drag bombs, incendiary cluster bombs, combined effects munitions, mine dispensing munitions, AGM-65 Maverick missiles and laser-guided/electro-optically guided bombs; infrared countermeasure flares; electronic countermeasure chaff; jammer pods; 2.75-inch (6.99 centimeters) rockets; illumination flares and AIM-9 Sidewinder missiles.
Service Life
First Flight: May 10, 1972 (prototype)
April 5, 1972 (A-10)
End of Service: N/A
Number Built: A-10A (721) + A-10B (30) [~751 total]
^ Top ^


A-10 Thunderbolt II (Warthog) Achievements
  • The A-10's survivability in close air support greatly exceeds that of previous air force aircraft.
  • The A-10 was the first Air Force aircraft specially designed for close air support of ground forces.
^ Top ^


A-10 Thunderbolt II (Warthog) Features

  The Warthog is literally built around its 30-mm General Electric GAU-8 Avenger seven barrel cannon, the most powerful gun ever fitted to an aircraft of this class. The A-10 features eleven underwing/underfuselage hardpoints and can carry 16,000lb or ordinance -- including AGM-65 Maverick anti-armor missiles, cluster bombs, LGBs, and AIM-9 AAMs.

Summary Copyright © Charles M (JetWhiz)

^ Top ^


A-10 Thunderbolt II (Warthog) Background

  The A-10 was designed for close support in low intensity conflicts during the Vietnam War, yet it came to be seen as a dedicated anti-armor platform by the early 1970s. Early before the A-10 came into production, however, the USAF held a flyoff between the Northrop YA-9 and the Fairchild Republic A-10. The A-10 was chosen and 707 A-10A's went into production. The Warthog, as it came to be known, was designed for high-survivability with a large-area wing, rear-mounted engines, and redundant and armored flight controls. A titanium covering surrounds both the cockpit and ammunition tank. As A-10's entered service in the USAF around 1977, and as vulnerability of the A-10 was questioned it was slowly withdrawn in favor of the F-16. Although the A-10 was never exported, it was redesignated OA-10 for the Forward Air Control role. The only difference between the A-10 and OA-10 is that the OA-10 only carries smoke rockets and AIM-9 Sidewinder AAMs for self-defense.

Summary Copyright © Charles M (JetWhiz)

^ Top ^

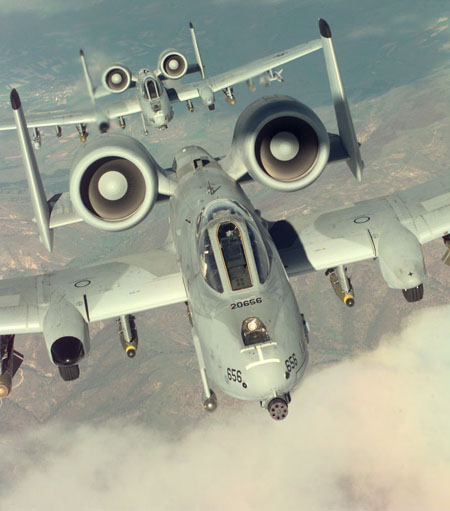

A-10 Thunderbolt II (Warthog) Photos
A-10 Thunderbolt II (Warthog)A-10 Thunderbolt II (Warthog)
A-10 Thunderbolt II (Warthog)A-10 Thunderbolt II (Warthog)
A-10 Thunderbolt II (Warthog)A-10 Thunderbolt II (Warthog)
A-10 Thunderbolt II (Warthog)A-10 Thunderbolt II (Warthog)
A-10 Thunderbolt II (Warthog)A-10 Thunderbolt II (Warthog)
A-10 Thunderbolt II (Warthog)
